Winter snow performance tires
ExtriGrip Snow GP
(FW171/HW501)

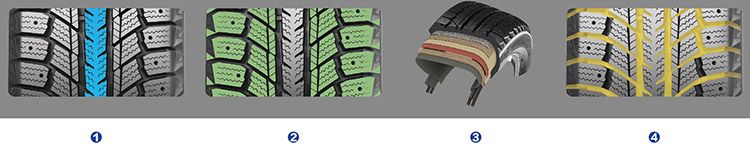

①Tread Pattern Design
Perfect braking & grip power on snow/ice road conditions provided by directional pattern and studdable design.
②Super Braking Power
6% widened tread design offers even landing area, improves braking and wear resistant performance on snow/ice terrain.
③Tire Construction
1.Jointless and high-strength nylon covering layer.
2.High tension steel belt.
3.Dual carcass construction.
4.Jointless and high-strength bead steel wire
④Excellent Drainage Performance
“V” groove design delivers perfect water drainage performance when snow melts, offers safer,more stable driving. Terrain road conditions.
⑤Performance Test
| Inch | Series | Size | LI/SI | Standard Rim | Overall Diameter | Section Width | Load Capacity(kg) | Std. Cold Infl.Pressure(kPa) | Max Infl.Pressure (kPa) | ||
| mm | inch | mm | inch | ||||||||
| 13″ | 70 | 175/70R13 | 82T | 5.00B | 576 | 22.7 | 177 | 7 | 475 | 250 | 300 |
| 80 | 155/80R13 | 79T | 4 1/2J | 578 | 22.8 | 157 | 6.2 | 437 | 250 | 300 | |
| 14″ | 60 | 185/60R14 | 82T | 5 1/2J | 578 | 22.8 | 189 | 7.4 | 475 | 250 | 300 |
| 65 | 175/65R14 | 82T | 5J | 584 | 23 | 177 | 7 | 475 | 250 | 300 | |
| 185/65R14 | 86T | 5 1/2J | 596 | 23.5 | 189 | 7.4 | 530 | 250 | 300 | ||
| 70 | 185/70R14 | 88T | 5 1/2J | 616 | 24.3 | 189 | 7.4 | 560 | 250 | 300 | |
| 195/70R14 | 91T | 6J | 630 | 24.8 | 201 | 7.9 | 615 | 250 | 300 | ||
| 15″ | 55 | 195/55R15 | 85T | 6J | 595 | 23.4 | 201 | 7.9 | 515 | 250 | 300 |
| 60 | 185/60R15 | 84T | 5 1/2J | 603 | 23.7 | 189 | 7.4 | 500 | 250 | 300 | |
| 195/60R15 | 88T | 6J | 615 | 24.2 | 201 | 7.9 | 560 | 250 | 300 | ||
| 205/60R15 | 91T | 6J | 627 | 24.7 | 209 | 8.2 | 615 | 250 | 300 | ||
| 215/60R15 | 93T | 6 1/2J | 639 | 25.2 | 221 | 8.7 | 650 | 250 | 300 | ||
| 65 | 185/65R15 | 88T | 5 1/2J | 621 | 24.4 | 189 | 7.4 | 560 | 250 | 300 | |
| 195/65R15 | 91T | 6J | 635 | 25 | 201 | 7.9 | 615 | 250 | 300 | ||
| 205/65R15 | 94T | 6J | 647 | 25.5 | 209 | 8.2 | 670 | 250 | 300 | ||
| 70 | 205/70R15 | 96T | 6J | 669 | 26.3 | 209 | 8.2 | 710 | 250 | 300 | |
| 215/70R15 | 98T | 6 1/2J | 683 | 26.9 | 221 | 8.7 | 750 | 250 | 300 | ||
| 16″ | 50 | 225/50R16 | 92T | 7J | 632 | 24.9 | 233 | 9.2 | 630 | 250 | 300 |
| 55 | 205/55R16 | 91T | 6 1/2J | 632 | 24.9 | 214 | 8.4 | 615 | 250 | 300 | |
| 215/55R16 | 93T | 7J | 642 | 25.3 | 226 | 8.9 | 650 | 250 | 300 | ||
| 225/55R16 | 95T | 7J | 654 | 25.7 | 233 | 9.2 | 690 | 250 | 300 | ||
| 60 | 205/60R16 | 92T | 6J | 652 | 25.7 | 209 | 8.2 | 630 | 250 | 300 | |
| 215/60R16 | 95T | 6 1/2J | 664 | 26.1 | 221 | 8.7 | 690 | 250 | 300 | ||
| 225/60R16 | 98T | 6 1/2J | 676 | 26.6 | 228 | 9 | 750 | 250 | 300 | ||
| 65 | 215/65R16 | 98T | 6 1/2J | 686 | 27 | 221 | 8.7 | 750 | 250 | 300 | |
