ExtriGrip Snow SUV
(FW177/HW507)

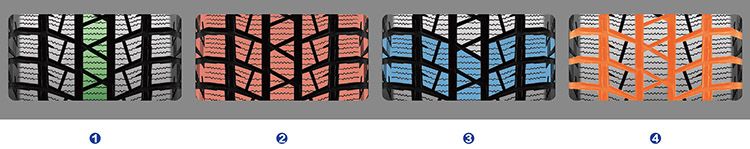

①Central rib pattern and multi-sipe design makes excellent braking and steering performance on snow/ice terrain.
②Wide tread design increases the contacting area with the ground, guarantees the driving safety on snow/ice terrain.
③Excellent pitch arrangement and special tread compound, disperse the noise and make driving more comfortable.
④4 longitudinal grooves and multi lateral pattern guarantee the super drainage performance.
| Inch | Series | Size | LI/SI | Standard Rim | Overall Diameter | Section Width | Load Capacity(kg) | Std. Cold Infl.Pressure(kPa) | Max Infl.Pressure (kPa) | ||
| mm | inch | mm | inch | ||||||||
| 15″ | 75 | 235/75R15 XL | 109Q | 6 1/2J | 733 | 28.9 | 235 | 9.3 | 1030 | 290 | 340 |
| 16″ | 70 | 215/70R16 | 100Q | 6 1/2J | 708 | 27.9 | 221 | 8.7 | 800 | 250 | 300 |
| 235/70R16 | 106Q | 7J | 736 | 29 | 240 | 9.4 | 950 | 250 | 300 | ||
| 265/70R16 | 112Q | 8J | 778 | 30.6 | 272 | 10.7 | 1120 | 250 | 300 | ||
| 17″ | 60 | 225/60R17 | 99T | 6 1/2J | 702 | 27.6 | 228 | 9 | 775 | 250 | 300 |
| 65 | 225/65R17 | 102T | 6 1/2J | 724 | 28.5 | 228 | 9 | 850 | 250 | 300 | |
| 235/65R17 XL | 108T | 7J | 738 | 29.1 | 240 | 9.4 | 1000 | 290 | 340 | ||
